操作面板

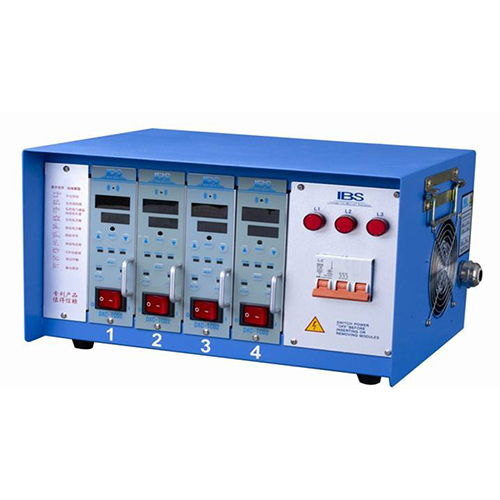

简介:本产品集模具温度控制、热胶道针阀控制于一体，温度控制12-36组和时序控制6-18组可选配，高精度PID调节，确保温度控制的精确性，控制输出类型有可硅调压(PWM方式)和可控硅调功(SSR方式)立体式箱体设计，占用空间小，稳定性好大屏幕TFT-LCD直观显示，维修维护成本低。

The productset mold temperature control, hotrunner needle voive conirul i one, temperaure control and timing control group 6-18 12 -36 group optinal, high- precion PID regulatorto ensure the acuraCy of the temperature control to control the cofrllbl output types sion regulator IPWM mode) and SCR Power (SR model three- dimensional box design, smllooprnt, the stability ofo big- sreen TFT-LCD visual display, repair and maintenance costs low.

技术参数

※中文报警信息提示             ※电流和输出比例显示
※ 熔丝损坏提示                   ※热电偶开路、反接侦测
※加热管短路、开路侦测      ※可控硅短路、开路监测
※380V过电压保护功能        ※零线接错不烧继电器
※热电偶损坏并线功能

※全工业级电子元件，适合任何低温和高温工作环境

※Chinese alarm message alert
※current and output proportional display
※fuse damaged Tips
※thermocouple open circuit, reverse polarity detection
※heating tube short, open detection
※thyristor short circuit, open circuit monitoring
※380V overvoltage protection
※zero line fault relay does not burn
※thermocouple wire damage and function
※Allindustrial grade electronic components,Low and high temperature suitable for any work environment

基本参数

线性电压控制输出，更好的保护加热管改良型接口，完全避免烧卡情况的发生个性软件定制
控制温差:士1°C
冷端补偿误差: < +1°C温度系数
温度控制范围: K型热电偶0- 450°C, J型热电偶0- 450°C
输出总功率: 3.5KW*回路数
单回路最大输出电流: 15A
报警范围: 0-100C自由设定
适用热电偶型号: K、J型
工作电源盒最大输出率: AC220V (三相四线)
数字PID调节
I'EHt: -10"C-60"Ct8X
35% - 85%RH, 无腐蚀性

Linear voltage control output, and better protection of the heating tubes Improved interface card completely avoid burning happening Personalized custom software

Control temperature difference: t 1oC
Cold junction compensation error: <+1 oC temperature coefficient
Temperafure control: K-type thermocouple 0-450oC, J-type thermocouple 0 -450oC
Total power output: 3.5KW " number of loops
Single-loop maximum output current: 15A
Alarm range :0-100C set free
Applicable thermocouple type: K, Jtype
Maximum output power box work rate: AC220V (three phase four - wire)
Digital PID regulator
Working environment:-10oC-60oC Relative humidity
35% -85% RH, non-corrosive
